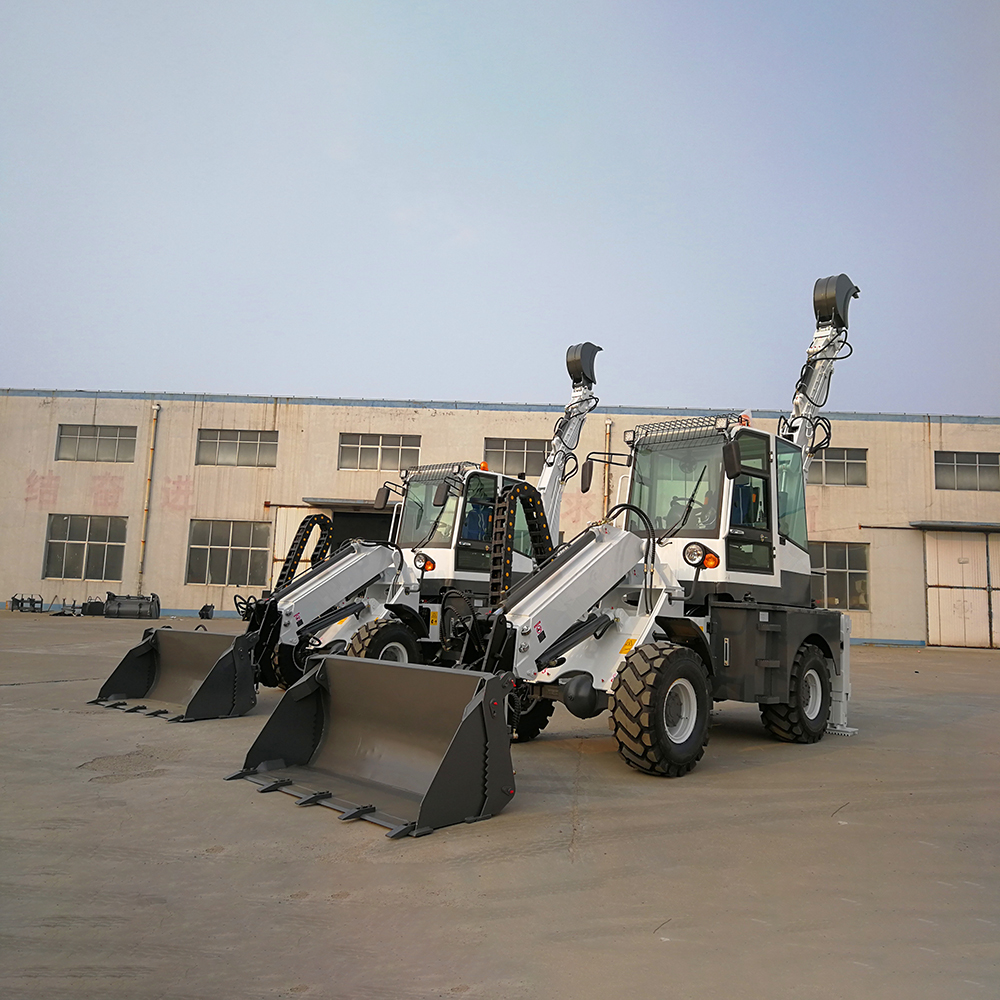

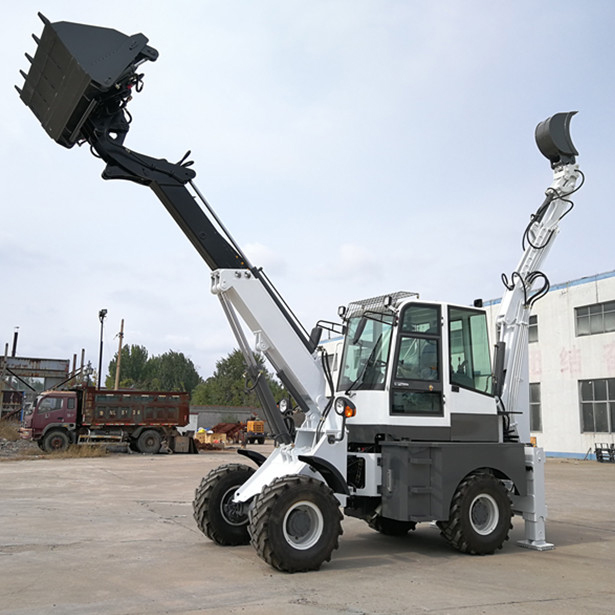

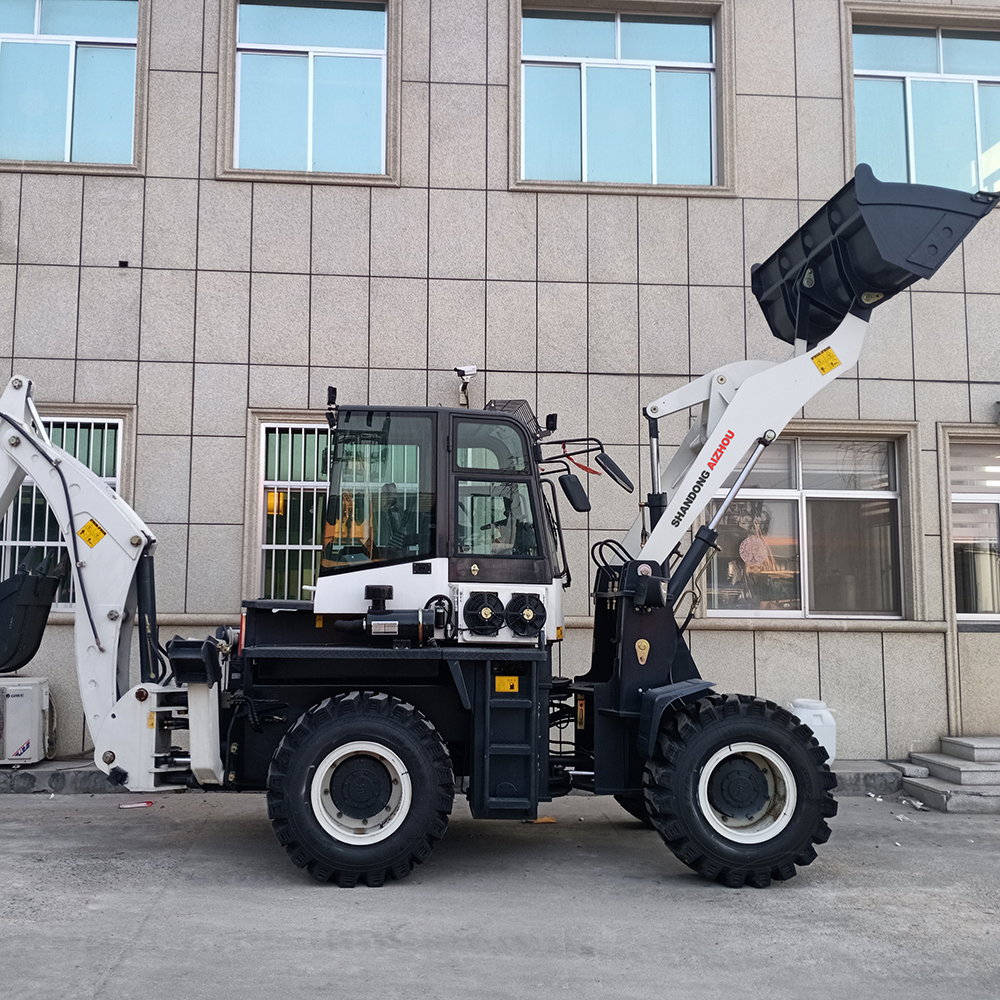

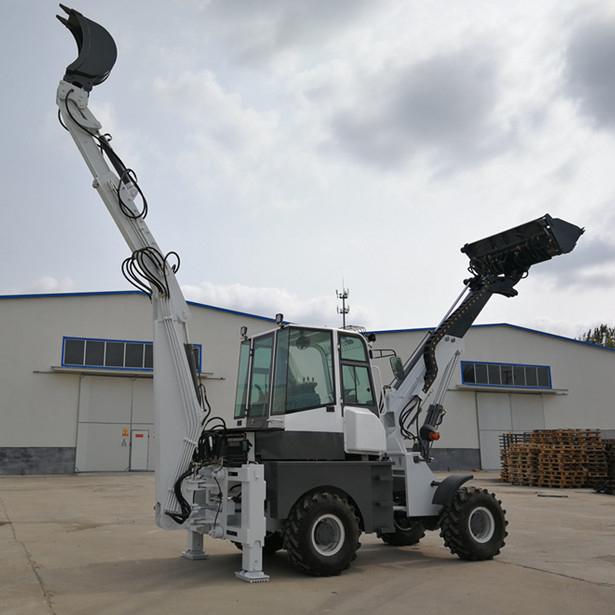

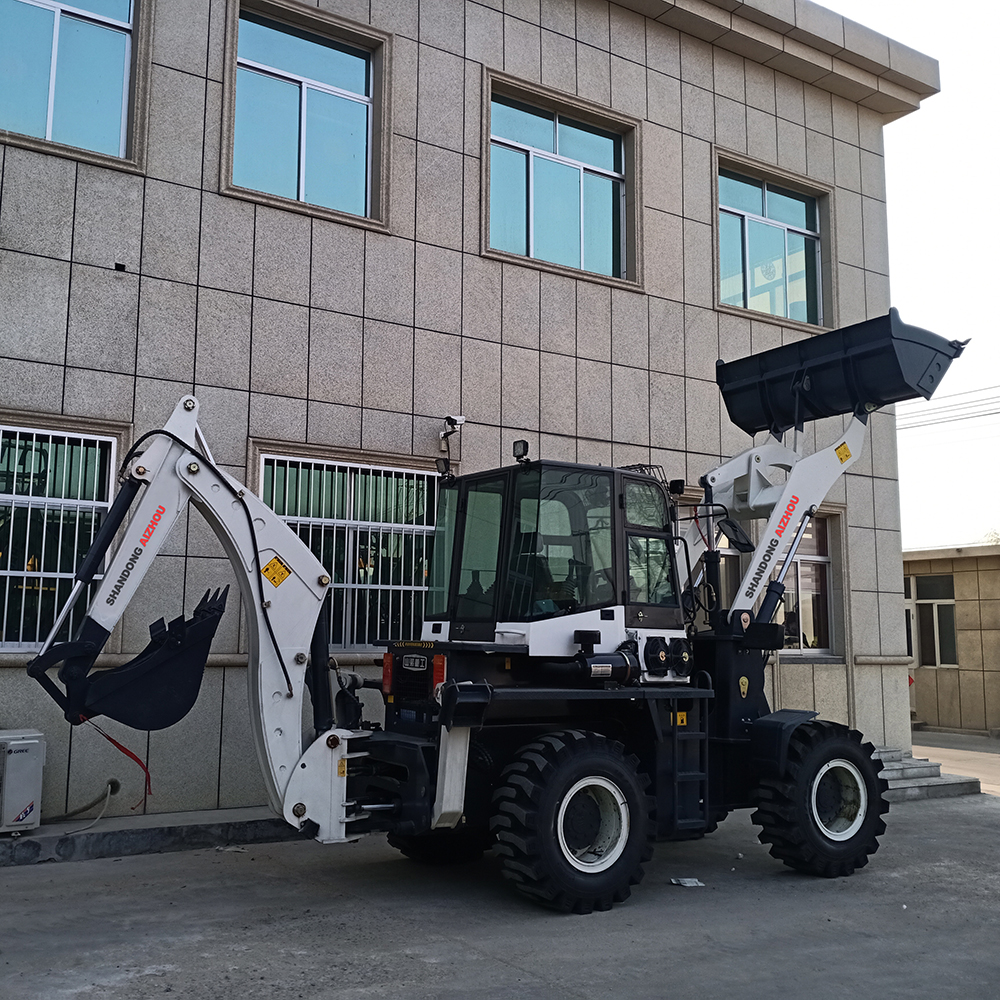

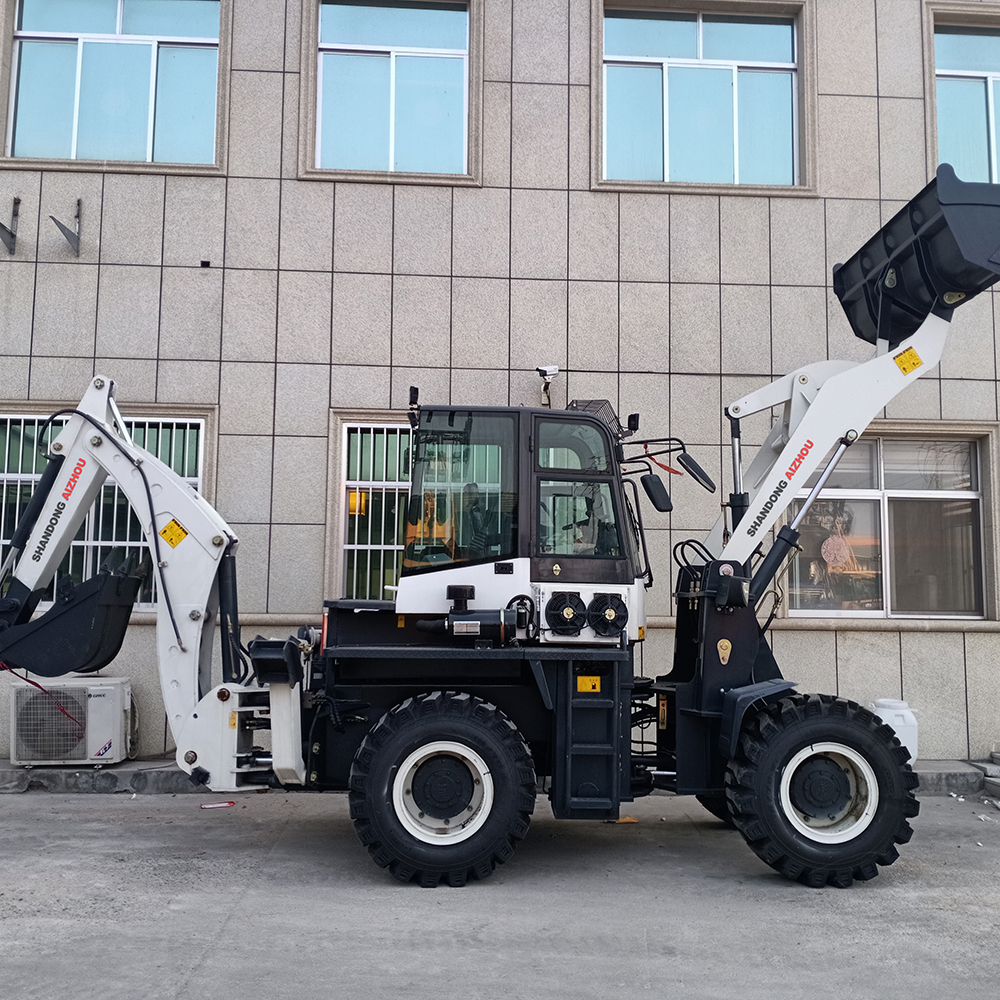

Backhoe Loader

The wheel loader is a heavy equipment machine widely used in construction and sidewalk maintenance, such as construction of highways, railways, buildings, hydroelectric power stations, ports, mining or diggings. And it can move aside or load materials such as asphalt, demolition debris, dirt, snow, feed, gravel, logs, raw minerals, recycled material, rock, sand, woodchips, etc. into or onto another type of machinery, like a dump truck, conveyor belt, feed-hopper, or railroad car.

Details

The wheel loader is a heavy equipment machine widely used in construction and sidewalk maintenance, such as construction of highways, railways, buildings, hydroelectric power stations, ports, mining or diggings. And it can move aside or load materials such as asphalt, demolition debris, dirt, snow, feed, gravel, logs, raw minerals, recycled material, rock, sand, woodchips, etc. into or onto another type of machinery, like a dump truck, conveyor belt, feed-hopper, or railroad car.




Backhoe Loader Product Description


1.Increased the cab with safety glass, bright and spacious.

2.Working table, water temperature, oil temperature, current, can see clearly at a glance.

3.Reasonable fuel tank, convenient to refuel.

4.Using brand-name hydraulic parts,the main pump has a long life and high working  efficiency.

5.Adjustable seat, easy to use, comfortable.

6.Hydraulic steering, easy to operate, convenient.

7.Hydraulic walking system, using domestic famous brand piston motor, mechanical stepless  gears.

8.Fully equipped with all the functions of small excavators and loaders.

9.Predominant overall performance, with excellent operating efficiency.

10.Can be equipped with a variety of optional parts to meet different user requirements.

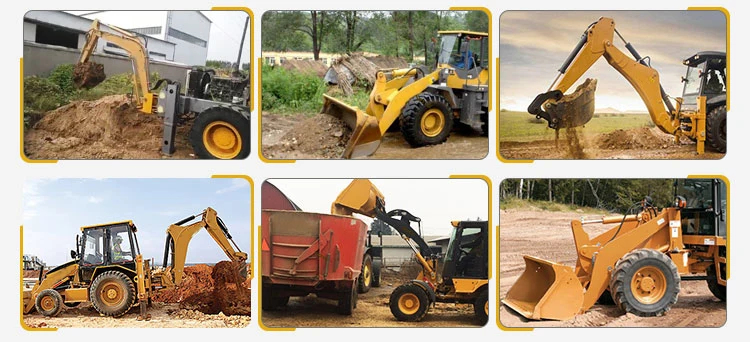

Application Scenarios


Product Parameter
Model
Dimensions (mm)
5800*1850*2750
Work Weight(kg)
3700
Rated power (kw)
55
Bucket volume (m³)
0.15
Loader volume (m³)
0.7
Digging force (kn)
28
Rising power (kn)
36
Driving speed (km/h)
0.26
Gradeability(%)
25
Turning radius (mm)
4000
System working pressure (Mpa)
16
Digging radius (mm)
3400
Digging depth (mm)
2100
Bucket unloading height (mm)
2200
Loader unloading height (mm)
3300
Loader unloading distance (mm)
900
Loader movement time (s)
12
Wheel centre distance (mm)
1550
Wheelbase (mm)
2150
Tyre model Tire pressure (Kpa)
250
Drive Braking System
hydraulic pressure
Color
Customer requirements
Tyre model
23.5-16

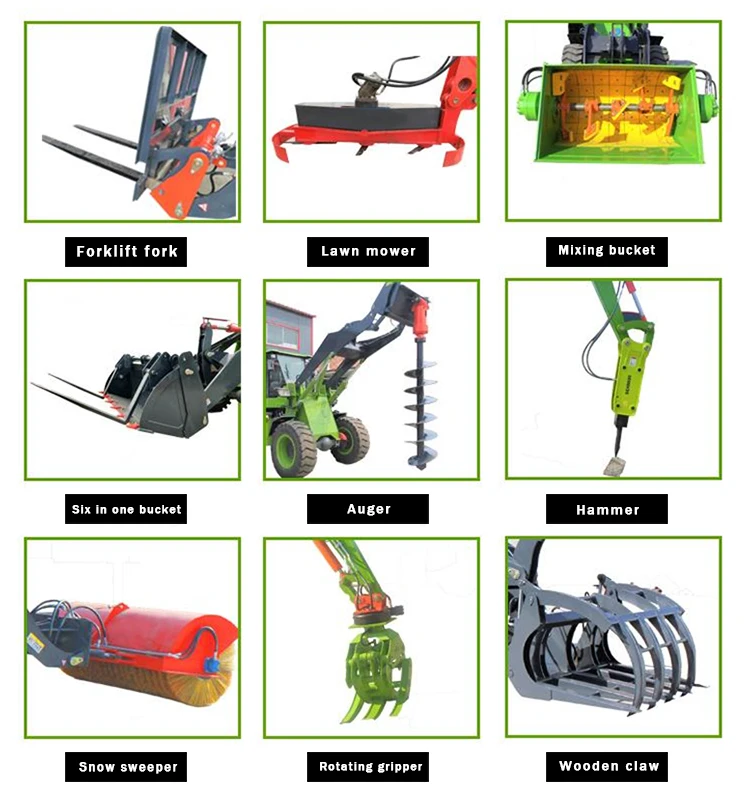

Product Acessories
